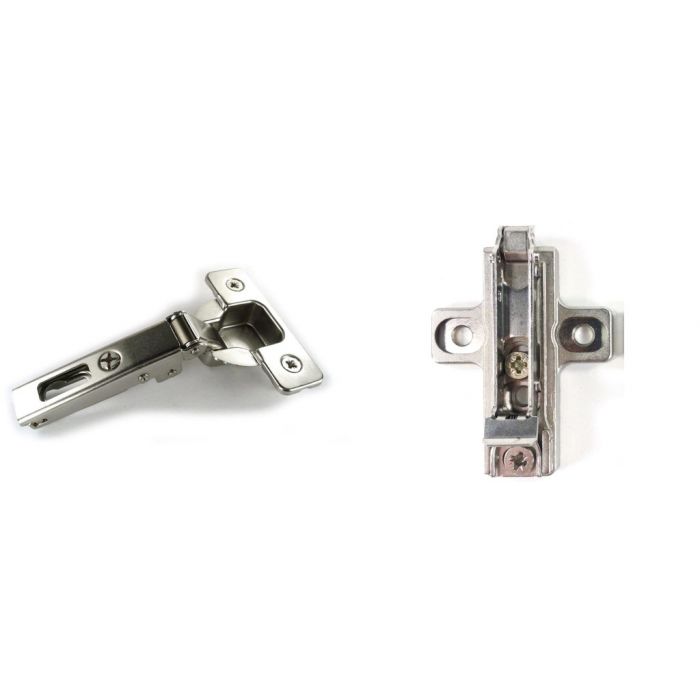

C2RPA99-BAR3R39 Salice Hinge Baseplate Combo 15mm to 18mm Overlay

As low as $4.52

In stock

SKU
C2RPA99-BAR3R39
    Hinge:
  • C2RPA99
  • Baseplate:
  • BAR3R39
  • Overlays Supported:
  • 15mm to 18mm
  • Manufacturer:
  • Salice
  • Sold As:
  • Each

Hinge Attributes

    Series:
  • 200 Series
  • Arm Shape:
  • Full Overlay
  • Degree of Opening:
  • 110°
  • Close Type:
  • Push
  • Arm Color:
  • Nickel
  • Cup Color:
  • Nickel
  • Fixing System
  • Knock-in (dowels)
  • Cup Depth:
  • 11mm
  • Hinge Special Feature:
  • Push Open

Baseplate Attributes

    Attachment to Hinge:
  • Clip-on
  • Color:
  • Nickel
  • Fixing System:
  • Wood Screws
  • Height Adjustment:
  • Cam
  • Depth Adjustment:
  • Cam
  • Plate Height:
  • 3mm
  • Shape:
  • Cross shape
  • Material:
  • Cast/Steel
  • Special Attribute:
  • No Special Attribute
Customize C2RPA99-BAR3R39 Salice Hinge Baseplate Combo 15mm to 18mm Overlay
Concealed Hinge Salice 110° Opening Knock-in (dowels) Push Open (Requires Latch) PN: C2RPA99   + $3.32
  • Buy 300 for $3.24 each and save 2%
  • Buy 900 for $2.86 each and save 14%
Baseplate Salice Cross Shape Cast/Steel Clip-on PN: BAR3R39 3mm Height   + $1.20
  • Buy 50 for $0.77 each and save 36%
  • Buy 300 for $0.72 each and save 40%

* Required Fields

Your Customization
C2RPA99-BAR3R39 Salice Hinge Baseplate Combo 15mm to 18mm Overlay
C2RPA99-BAR3R39 Salice Hinge Baseplate Combo 15mm to 18mm Overlay

In stock

$4.52

Summary
    Overlay Drilling Chart
    Drilling Distance (TAB) Door Overlay
    3mm 15mm
    4mm 16mm
    5mm 17mm
    6mm 18mm

    Term Explanations

    Overlay Applications

    Salice Full Overlay Door Diagram
    Application With Full Overlay Door
    Salice Full Overlay Door Diagram
    Application With Half Overlay Door
      Key
    • S = Thickness of the cabinet side
    • D = Required door overlay
    • T = Door thickness
    • K = Drilling distance (TAB)
    • A = Reveal
    • L = Gap between door and carcase
    • H = Height of the mounting plate
    • G = Hinge constant

    Whatever door overlay is required, you can select from our range the combination of both the type of hinge arm and the thickness of mounting plate necessary to solve your construction problem and avoid the need to stock too many different components.

    More Information
    Documents
    Base Plate Attachment Clip-on
    Base Plate Depth Adjustment Cam
    Base Plate Fixing System Wood Screws
    Base Plate Special Attributes No Special Attribute
    Base Plate Material Cast/Steel
    Base Plate Color Nickel
    Base Plate Height 3mm
    Base Plate Shape Cross shape
    Base Plate Height Adjustment Cam
    Hinge Hole Spacing 45mm
    Hinge Close Type Push
    Hinge Fixing Hole Diameter 8mm
    Hinge Cup Diameter 35mm
    Hinge Cup Depth 11mm
    Hinge Arm Color Nickel
    Hinge Additional Features Push Open
    Hinge Cup Color Nickel
    Hinge Arm Shape Full Overlay
    Hinge Fixing System Knock-in (dowels)
    Hinge Series 200 Series
    Minimum Reveal on 3/4" Square Edge Doors 1.2mm
    Sold As Each
