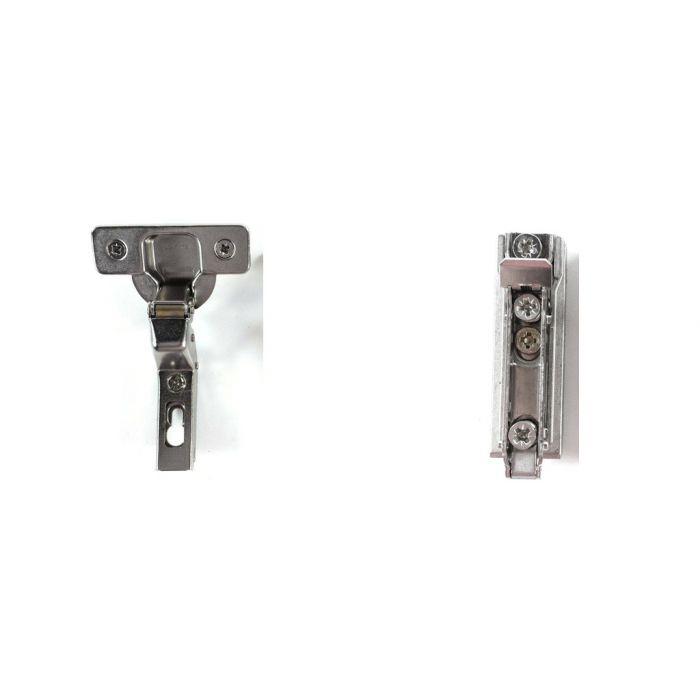

C2RPP99-BAPGR69/16 Salice Hinge Baseplate Combo -5mm to -2mm Overlay
As low as $1.07
Out of stock
SKU
C2RPP99-BAPGR69/16
- C2RPP99
- BAPGR69/16
- -5mm to -2mm
- 2mm to 3mm
- Salice
- Each
Hinge Attributes
- 200 Series
- Inset
- 110°
- Push
- Nickel
- Nickel
- Knock-in (dowels)
- 11mm
- Push Open
Baseplate Attributes
- Clip-on
- Nickel
- Euro Screws
- Cam
- Cam
- 6mm
- Straight Plate
- Cast/Steel
- No Special Attribute
Overlay Drilling Chart | |
---|---|
Drilling Distance (TAB) | Door Overlay |
Inset Reveal (Door Gap) Drilling Chart | |
---|---|
Drilling Distance (TAB) | Inset Reveal (Door Gap) |
5mm | 3mm |
6mm | 2mm |
Term Explanations
Overlay Applications
- S = Thickness of the cabinet side
- D = Required door overlay
- T = Door thickness
- K = Drilling distance (TAB)
- A = Reveal
- L = Gap between door and carcase
- H = Height of the mounting plate
- G = Hinge constant
Whatever door overlay is required, you can select from our range the combination of both the type of hinge arm and the thickness of mounting plate necessary to solve your construction problem and avoid the need to stock too many different components.
Inset Applications
- S = Thickness of the cabinet side
- T = Door thickness
- K = Drilling distance (TAB)
- A = Reveal (Door Gap)
- L = Gap between internal face of door and internal cabinet elements (e.g. shelves, drawers, etc.)
- H = Height of the mounting plate
- G = Hinge constant
Whatever door overlay is required, you can select from our range the combination of both the type of hinge arm and the thickness of mounting plate necessary to solve your construction problem and avoid the need to stock too many different components.
Documents |
|
---|---|
Base Plate Attachment | Clip-on |
Base Plate Depth Adjustment | Cam |
Base Plate Fixing System | Euro Screws |
Base Plate Special Attributes | No Special Attribute |
Base Plate Material | Cast/Steel |
Base Plate Color | Nickel |
Base Plate Height | 6mm |
Base Plate Shape | Straight Plate |
Base Plate Height Adjustment | Cam |
Hinge Hole Spacing | 45mm |
Hinge Close Type | Push |
Hinge Fixing Hole Diameter | 8mm |
Hinge Cup Diameter | 35mm |
Hinge Cup Depth | 11mm |
Hinge Arm Color | Nickel |
Hinge Additional Features | Push Open |
Hinge Cup Color | Nickel |
Hinge Arm Shape | Inset |
Hinge Fixing System | Knock-in (dowels) |
Hinge Series | 200 Series |
Minimum Reveal on 3/4" Square Edge Doors | 1.2mm |
Sold As | Each |
