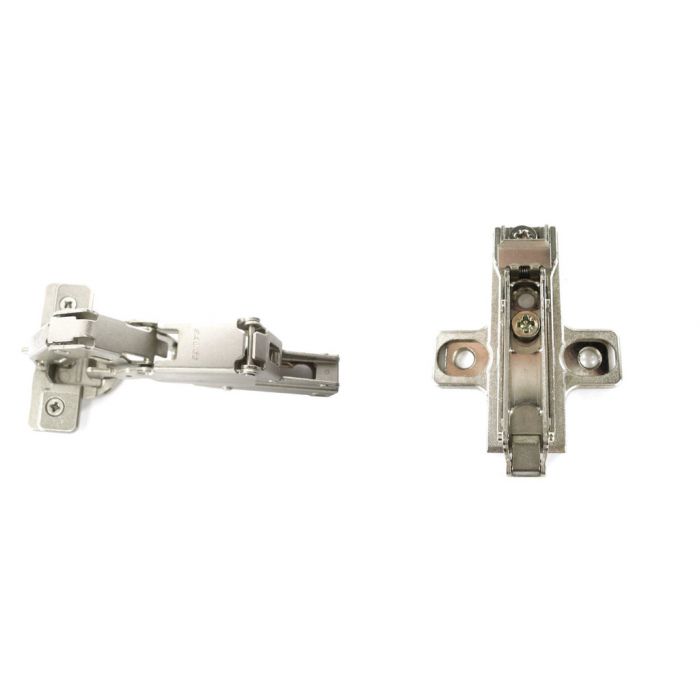

C2RSG99-BAR3R29 Salice Hinge Baseplate Combo 7mm to 12mm Overlay

As low as $1.24

Out of stock

SKU
C2RSG99-BAR3R29
    Hinge:
  • C2RSG99
  • Baseplate:
  • BAR3R29
  • Overlays Supported:
  • 7mm to 12mm
  • Manufacturer:
  • Salice
  • Sold As:
  • Each

Hinge Attributes

    Series:
  • 200 Series
  • Arm Shape:
  • Half Overlay
  • Degree of Opening:
  • 165°
  • Close Type:
  • Push
  • Arm Color:
  • Nickel
  • Cup Color:
  • Nickel
  • Fixing System
  • Knock-in (dowels)
  • Cup Depth:
  • 11mm
  • Hinge Special Feature:
  • Push Open

Baseplate Attributes

    Attachment to Hinge:
  • Clip-on
  • Color:
  • Nickel
  • Fixing System:
  • Wood Screws
  • Height Adjustment:
  • Cam
  • Depth Adjustment:
  • Cam
  • Plate Height:
  • 2mm
  • Shape:
  • Cross shape
  • Material:
  • Cast/Steel
  • Special Attribute:
  • No Special Attribute
Overlay Drilling Chart
Drilling Distance (TAB) Door Overlay
3mm 7mm
4mm 8mm
5mm 9mm
6mm 10mm
7mm 11mm
8mm 12mm

Term Explanations

Overlay Applications

Salice Full Overlay Door Diagram
Application With Full Overlay Door
Salice Full Overlay Door Diagram
Application With Half Overlay Door
    Key
  • S = Thickness of the cabinet side
  • D = Required door overlay
  • T = Door thickness
  • K = Drilling distance (TAB)
  • A = Reveal
  • L = Gap between door and carcase
  • H = Height of the mounting plate
  • G = Hinge constant

Whatever door overlay is required, you can select from our range the combination of both the type of hinge arm and the thickness of mounting plate necessary to solve your construction problem and avoid the need to stock too many different components.

More Information
Documents
Base Plate Attachment Clip-on
Base Plate Depth Adjustment Cam
Base Plate Fixing System Wood Screws
Base Plate Special Attributes No Special Attribute
Base Plate Material Cast/Steel
Base Plate Color Nickel
Base Plate Height 2mm
Base Plate Shape Cross shape
Base Plate Height Adjustment Cam
Hinge Hole Spacing 45mm
Hinge Close Type Push
Hinge Fixing Hole Diameter 8mm
Hinge Cup Diameter 35mm
Hinge Cup Depth 11mm
Hinge Arm Color Nickel
Hinge Additional Features Push Open
Hinge Cup Color Nickel
Hinge Arm Shape Half Overlay
Hinge Fixing System Knock-in (dowels)
Hinge Series 200 Series
Minimum Reveal on 3/4" Square Edge Doors 0mm
Sold As Each
