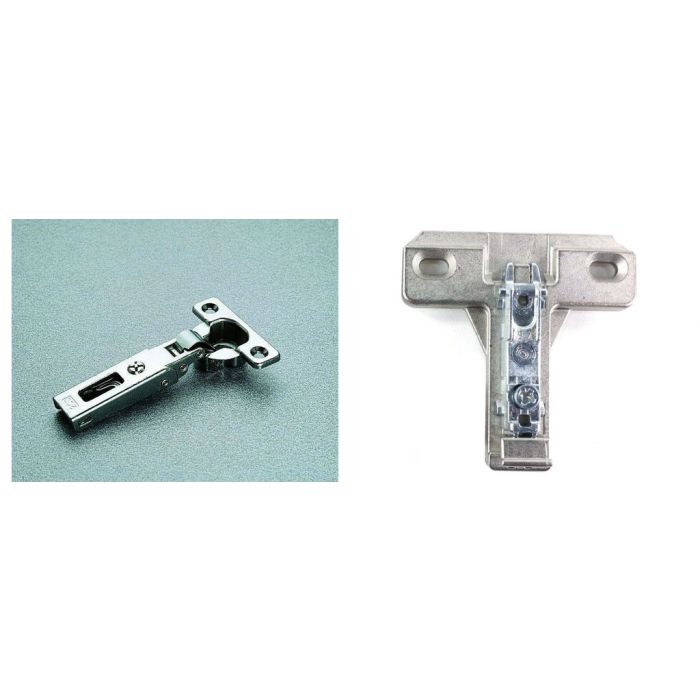

C4A7D99-BAU3E19 Salice Hinge Baseplate Combo 1/2" to 5/8" Overlay
As low as $3.10
Out of stock
SKU
C4A7D99-BAU3E19
- C4A7D99
- BAU3E19
- 1/2" to 5/8"
- Salice
- Each
Hinge Attributes
- 400 Series
- 1/2" Overlay
- 94°
- Self-close
- Nickel
- Nickel
- Screw-on
- 11mm
- No Additional Features
Baseplate Attributes
- Clip-on
- Nickel
- Wood Screws
- Screw
- Cam
- 1mm
- Face Frame Adapter
- Cast
- No Special Attribute
Overlay Drilling Chart | |
---|---|
Drilling Distance (TAB) | Door Overlay |
3.7mm | 1/2" |
5.3mm | 9/16" |
6.9mm | 5/8" |
Term Explanations
Overlay Applications
- S = Thickness of the cabinet side
- D = Required door overlay
- T = Door thickness
- K = Drilling distance (TAB)
- A = Reveal
- L = Gap between door and carcase
- H = Height of the mounting plate
- G = Hinge constant
Whatever door overlay is required, you can select from our range the combination of both the type of hinge arm and the thickness of mounting plate necessary to solve your construction problem and avoid the need to stock too many different components.
Documents |
|
---|---|
Base Plate Attachment | Clip-on |
Base Plate Depth Adjustment | Cam |
Base Plate Fixing System | Wood Screws |
Base Plate Special Attributes | No Special Attribute |
Base Plate Material | Cast |
Base Plate Color | Nickel |
Base Plate Height | 1mm |
Base Plate Shape | Face Frame Adapter |
Base Plate Height Adjustment | Screw |
Hinge Hole Spacing | 48mm |
Hinge Close Type | Self-close |
Hinge Cup Diameter | 26mm |
Hinge Cup Depth | 11mm |
Hinge Arm Color | Nickel |
Hinge Additional Features | No Additional Features |
Hinge Cup Color | Nickel |
Hinge Arm Shape | 1/2" Overlay |
Hinge Fixing System | Screw-on |
Hinge Series | 400 Series |
Minimum Reveal on 3/4" Square Edge Doors | NotListed |
Sold As | Each |
