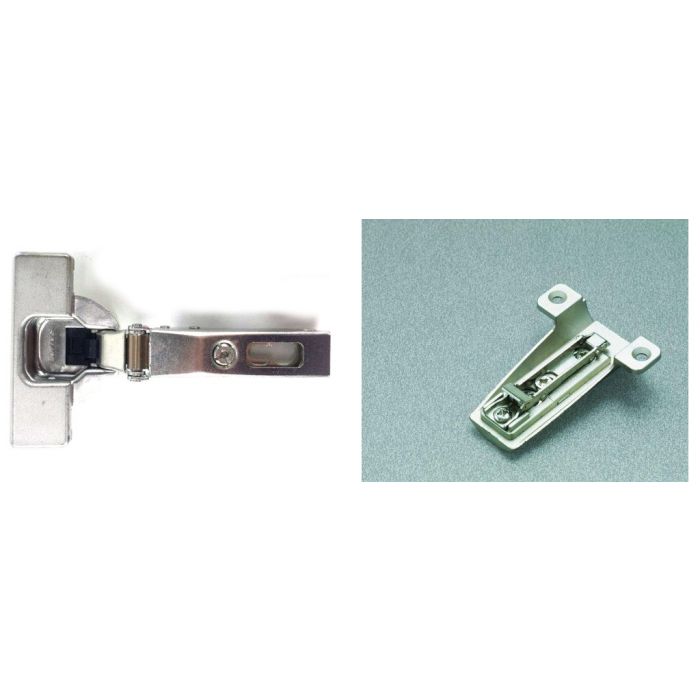

C7J6DD9-BAM3R09 Salice Hinge Baseplate Combo 1" Overlay

As low as $5.65

In stock

SKU
C7J6DD9-BAM3R09
    Hinge:
  • C7J6DD9
  • Baseplate:
  • BAM3R09
  • Overlays Supported:
  • 1"
  • Manufacturer:
  • Salice
  • Sold As:
  • Each

Hinge Attributes

    Series:
  • 700 Series
  • Arm Shape:
  • 1/2" Overlay
  • Degree of Opening:
  • 110°
  • Close Type:
  • Soft-close
  • Arm Color:
  • Nickel
  • Cup Color:
  • Nickel
  • Fixing System
  • Logica
  • Cup Depth:
  • 13.5mm
  • Hinge Special Feature:
  • No Additional Features

Baseplate Attributes

    Attachment to Hinge:
  • Clip-on
  • Color:
  • Nickel
  • Fixing System:
  • Wood Screws
  • Height Adjustment:
  • Cam
  • Depth Adjustment:
  • Cam
  • Plate Height:
  • -11mm
  • Shape:
  • Half Moon Face Frame Adapter
  • Material:
  • Cast/Steel
  • Special Attribute:
  • No Special Attribute
Customize C7J6DD9-BAM3R09 Salice Hinge Baseplate Combo 1" Overlay
Concealed Hinge Salice 110° Opening Logica Soft-close PN: C7J6DD9   + $3.30
  • Buy 50 for $2.76 each and save 16%
  • Buy 300 for $2.70 each and save 18%
Baseplate Salice Half Moon Face Frame Plate Cast/Steel Clip-on PN: BAM3R09 -11mm Height   + $2.35
  • Buy 300 for $2.29 each and save 3%
  • Buy 900 for $2.03 each and save 14%

* Required Fields

Your Customization
C7J6DD9-BAM3R09 Salice Hinge Baseplate Combo 1" Overlay
C7J6DD9-BAM3R09 Salice Hinge Baseplate Combo 1" Overlay

In stock

$5.65

Summary
    Overlay Drilling Chart
    Drilling Distance (TAB) Door Overlay
    4.4mm 1"

    Term Explanations

    Overlay Applications

    Salice Full Overlay Door Diagram
    Application With Full Overlay Door
    Salice Full Overlay Door Diagram
    Application With Half Overlay Door
      Key
    • S = Thickness of the cabinet side
    • D = Required door overlay
    • T = Door thickness
    • K = Drilling distance (TAB)
    • A = Reveal
    • L = Gap between door and carcase
    • H = Height of the mounting plate
    • G = Hinge constant

    Whatever door overlay is required, you can select from our range the combination of both the type of hinge arm and the thickness of mounting plate necessary to solve your construction problem and avoid the need to stock too many different components.

    More Information
    Documents
    Base Plate Attachment Clip-on
    Base Plate Depth Adjustment Cam
    Base Plate Fixing System Wood Screws
    Base Plate Special Attributes No Special Attribute
    Base Plate Material Cast/Steel
    Base Plate Color Nickel
    Base Plate Height -11mm
    Base Plate Shape Half Moon Face Frame Adapter
    Base Plate Height Adjustment Cam
    Hinge Hole Spacing 45mm
    Hinge Close Type Soft-close
    Hinge Fixing Hole Diameter 8mm
    Hinge Cup Diameter 35mm
    Hinge Cup Depth 13.5mm
    Hinge Arm Color Nickel
    Hinge Additional Features No Additional Features
    Hinge Cup Color Nickel
    Hinge Arm Shape 1/2" Overlay
    Hinge Fixing System Logica
    Hinge Series 700 Series
    Minimum Reveal on 3/4" Square Edge Doors NotListed
    Sold As Each
