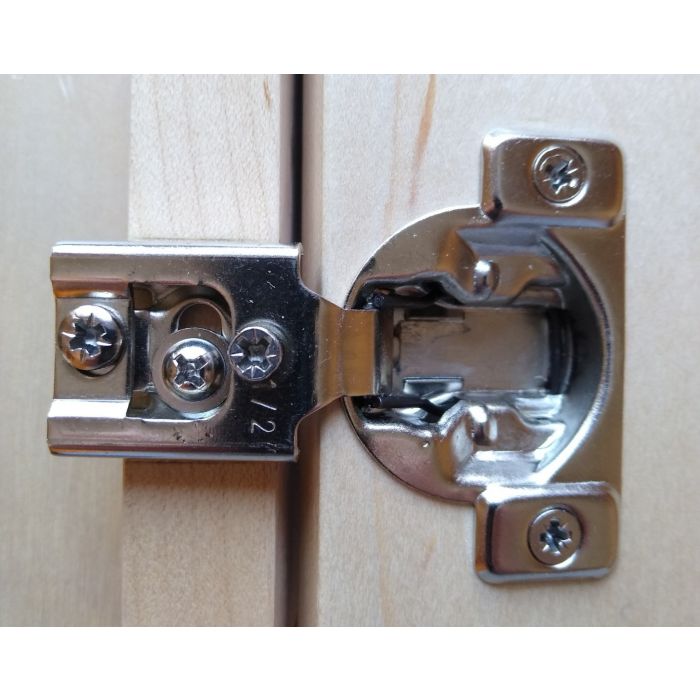

Self Close Compact, 1/2" Overlay, Face Frame Hinge, 105-degree opening, 7/16" cup depth, Wood screw mount
$0.98
In stock: 147 qty
SKU
h294
- Buy 50 for $0.74 each and save 24%
- Buy 200 for $0.69 each and save 30%
Compact Face-frame Hinge 1/2" Overlay 105 degree 7/16" cup Depth Wood Screw mount
Compact Face-frame Hinge 1/2" overlay
105 degree
Self close
Wood screw
Cam in out adjust
Cam side to side adjust
Fixing screw height adjust
2.5mm tab
| Hinge Material | Steel |
|---|---|
| Hinge Additional Features | 2 Cam Adjustment, 1 Fixing Screws |
| Hinge Cup Depth | 11mm |
| Hinge Series | Face Frame |
| Hinge Hole Spacing | 45mm |
| One Piece Hinge Overlay | 1/2" |
| Required Drilling Distance (TAB) | 2.5mm |
| Hinge Degree of Opening | 105° |
| Hinge Cup Diameter | 35mm |
| Hinge Fixing System | Screw-on |
| Hinge Cup Color | Nickel |
| Hinge Close Type | Self-close |
| Hinge Arm Shape | 1/2" Overlay |
| Hinge Arm Color | Nickel |
| Sold As | 1 Each |
| Lead Time | 7-10 business days |
| Manufacturer | Pride |
