Self Close, Compact, 1-1/4" Overlay, Face Frame Hinge, 105-degree opening, 7/16" cup depth, Press in Dowel
$1.06
In stock: 200 qty
SKU
h297-d
- Buy 50 for $0.80 each and save 25%
- Buy 200 for $0.74 each and save 30%

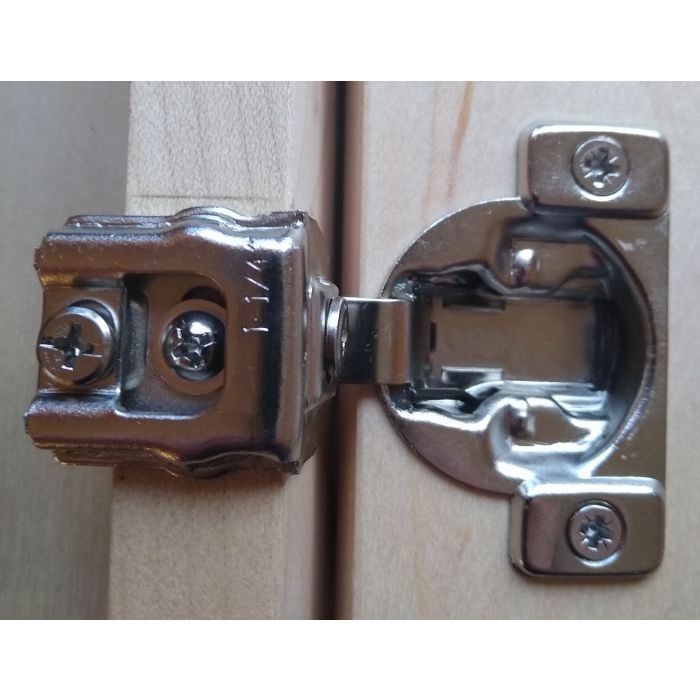

Self close 1-1/4" overlay compact face-frame hinge press in dowel
Self Close Face Frame Compact Hinge
1-1/4" overlay
105-degree opening
7/16" cup depth
Press in dowel
Cam adjust in out
Cam adjust side to side
Fixing screw adjust height
2.5mm tab
| Hinge Material | Steel |
|---|---|
| Hinge Additional Features | 2 Cam Adjustment, 1 Fixing Screws |
| Hinge Cup Depth | 11mm |
| Hinge Series | Face Frame |
| Hinge Hole Spacing | 45mm |
| One Piece Hinge Overlay | 1-1/4" |
| Required Drilling Distance (TAB) | 2.5mm |
| Hinge Degree of Opening | 105° |
| Hinge Cup Diameter | 35mm |
| Hinge Fixing System | Logica |
| Hinge Cup Color | Nickel |
| Hinge Close Type | Self-close |
| Hinge Fixing Hole Diameter | 8mm |
| Hinge Arm Color | Nickel |
| Sold As | 1 Each |
| Lead Time | 7-10 business days |
| Manufacturer | Pride |
