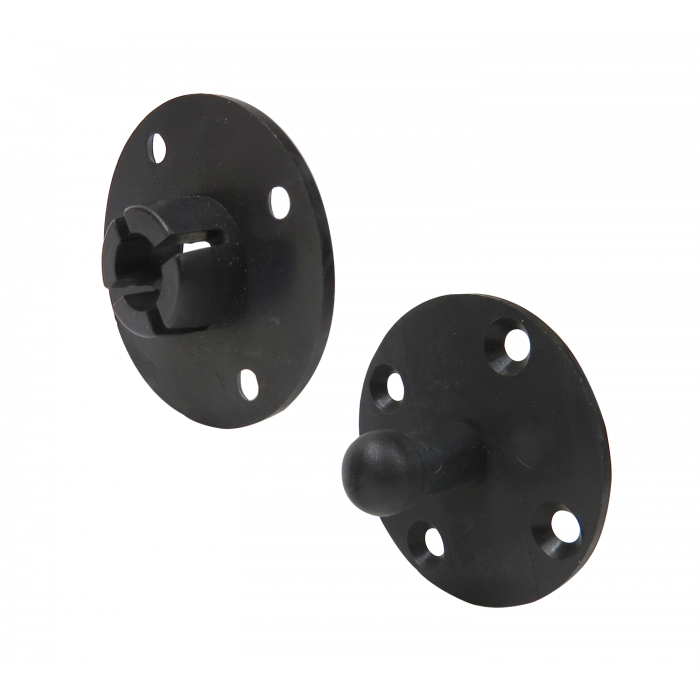

BeauClip Easy Panel Fastener Clips - Box 1000

The BeauClip is an easy fastener system for panels. The system is a secure, reusable, durable and effective way to prevent panels from slipping, falling and constantly being repaired. Stop struggling with inaccurate measurements, velcro and complicated specialty tools. This product is also good for RV’s, architectural woodwork, applied wall panels, seat cushions, and much more!

Install Tips
• If your substrate is uneven or bowed, there is a chance of the Clip failing caused by movement of the boat.
• BeauClips are to be attached on straight material ONLY!
• Must Drill ½” holes at a perpendicular angle.
• Must NOT over tighten #4 screws as no to change shape of clips (set torque on drill).
• The heavier the object, the more clips are needed.
• BeauClips are built for STRAIGHT DOWN pull force. Puling at an angle can cause breakage of clips and damage to panels.
• Substrate = NON removable piece (Female clip is attached to Substrate with #4 Flat Head Phillips Screws.)
• Making hole in substrate “slightly” bigger will release ball pressure created by the male piece during insertion of the clips are too hard to separate.
• The thicker the plywood material the closer the BeauClips need to be installed.
• Recommend one BeauClips every 14” on 3/8” plywood materials.
• It is not recommended to use BeauClips to hold speakers or any other heavy objects
• For best installation it is recommended to use the ½’ Carbide tipped drill bit. (Beau-Bit)
