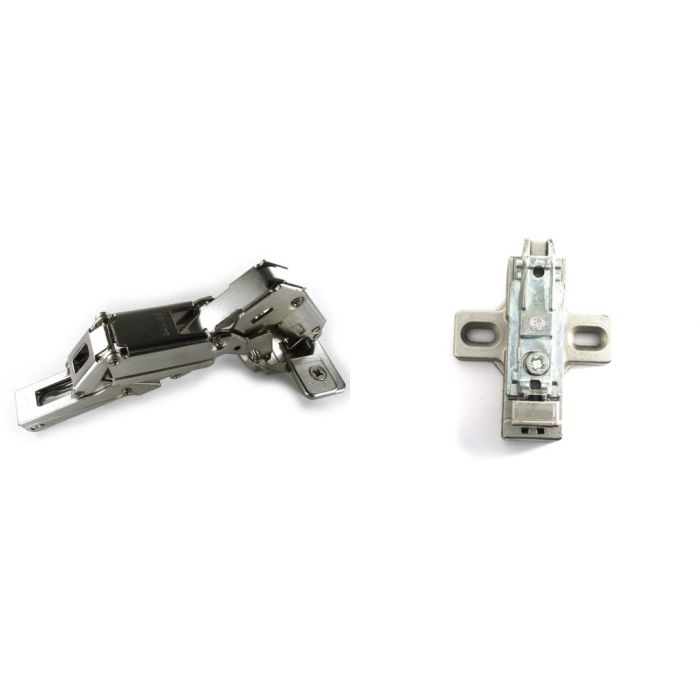

C2RMA99-BAV3EC9 Salice Hinge Baseplate Combo 6mm to 11mm Overlay

As low as $1.55

Out of stock

SKU
C2RMA99-BAV3EC9
    Hinge:
  • C2RMA99
  • Baseplate:
  • BAV3EC9
  • Overlays Supported:
  • 6mm to 11mm
  • Manufacturer:
  • Salice
  • Sold As:
  • Each

Hinge Attributes

    Series:
  • 200 Series
  • Arm Shape:
  • Full Overlay
  • Degree of Opening:
  • 155°
  • Close Type:
  • Self-close
  • Arm Color:
  • Nickel
  • Cup Color:
  • Nickel
  • Fixing System
  • Knock-in (dowels)
  • Cup Depth:
  • 11mm
  • Hinge Special Feature:
  • Zero Protrusion

Baseplate Attributes

    Attachment to Hinge:
  • Clip-on
  • Color:
  • Nickel
  • Fixing System:
  • Wood Screws
  • Height Adjustment:
  • Screw
  • Depth Adjustment:
  • Cam
  • Plate Height:
  • 12mm
  • Shape:
  • Cross shape
  • Material:
  • Cast
  • Special Attribute:
  • No Special Attribute
Overlay Drilling Chart
Drilling Distance (TAB) Door Overlay
3mm 6mm
4mm 7mm
5mm 8mm
6mm 9mm
7mm 10mm
8mm 11mm

Term Explanations

Overlay Applications

Salice Full Overlay Door Diagram
Application With Full Overlay Door
Salice Full Overlay Door Diagram
Application With Half Overlay Door
    Key
  • S = Thickness of the cabinet side
  • D = Required door overlay
  • T = Door thickness
  • K = Drilling distance (TAB)
  • A = Reveal
  • L = Gap between door and carcase
  • H = Height of the mounting plate
  • G = Hinge constant

Whatever door overlay is required, you can select from our range the combination of both the type of hinge arm and the thickness of mounting plate necessary to solve your construction problem and avoid the need to stock too many different components.

More Information
Documents
Base Plate Attachment Clip-on
Base Plate Depth Adjustment Cam
Base Plate Fixing System Wood Screws
Base Plate Special Attributes No Special Attribute
Base Plate Material Cast
Base Plate Color Nickel
Base Plate Height 12mm
Base Plate Shape Cross shape
Base Plate Height Adjustment Screw
Hinge Hole Spacing 45mm
Hinge Close Type Self-close
Hinge Fixing Hole Diameter 8mm
Hinge Cup Diameter 35mm
Hinge Cup Depth 11mm
Hinge Arm Color Nickel
Hinge Additional Features Zero Protrusion
Hinge Cup Color Nickel
Hinge Arm Shape Full Overlay
Hinge Fixing System Knock-in (dowels)
Hinge Series 200 Series
Minimum Reveal on 3/4" Square Edge Doors NotListed
Sold As Each
