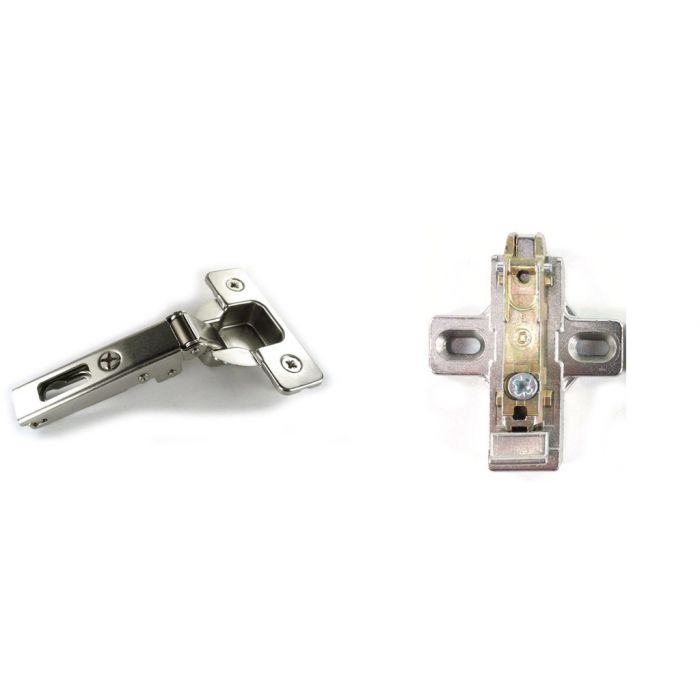

C2RPA99-BAV3E39F Salice Hinge Baseplate Combo 15mm to 18mm Overlay
As low as $4.32
In stock
SKU
C2RPA99-BAV3E39F
- C2RPA99
- BAV3E39F
- 15mm to 18mm
- Salice
- Each
Hinge Attributes
- 200 Series
- Full Overlay
- 110°
- Push
- Nickel
- Nickel
- Knock-in (dowels)
- 11mm
- Push Open
Baseplate Attributes
- Clip-on
- Nickel
- Wood Screws
- Screw
- Cam
- 3mm
- Cross shape
- Cast
- No 3rd Hole
Overlay Drilling Chart | |
---|---|
Drilling Distance (TAB) | Door Overlay |
3mm | 15mm |
4mm | 16mm |
5mm | 17mm |
6mm | 18mm |
Term Explanations
Overlay Applications
![Salice Full Overlay Door Diagram](/store/media/wysiwyg/for_prod_desc/hinges/salicefulloverlaydoordiagram.png)
![Salice Full Overlay Door Diagram](/store/media/wysiwyg/for_prod_desc/hinges/salicehalfoverlaydoordiagram.png)
- S = Thickness of the cabinet side
- D = Required door overlay
- T = Door thickness
- K = Drilling distance (TAB)
- A = Reveal
- L = Gap between door and carcase
- H = Height of the mounting plate
- G = Hinge constant
Whatever door overlay is required, you can select from our range the combination of both the type of hinge arm and the thickness of mounting plate necessary to solve your construction problem and avoid the need to stock too many different components.
Documents |
|
---|---|
Base Plate Attachment | Clip-on |
Base Plate Depth Adjustment | Cam |
Base Plate Fixing System | Wood Screws |
Base Plate Special Attributes | No 3rd Hole |
Base Plate Material | Cast |
Base Plate Color | Nickel |
Base Plate Height | 3mm |
Base Plate Shape | Cross shape |
Base Plate Height Adjustment | Screw |
Hinge Hole Spacing | 45mm |
Hinge Close Type | Push |
Hinge Fixing Hole Diameter | 8mm |
Hinge Cup Diameter | 35mm |
Hinge Cup Depth | 11mm |
Hinge Arm Color | Nickel |
Hinge Additional Features | Push Open |
Hinge Cup Color | Nickel |
Hinge Arm Shape | Full Overlay |
Hinge Fixing System | Knock-in (dowels) |
Hinge Series | 200 Series |
Minimum Reveal on 3/4" Square Edge Doors | 1.2mm |
Sold As | Each |
