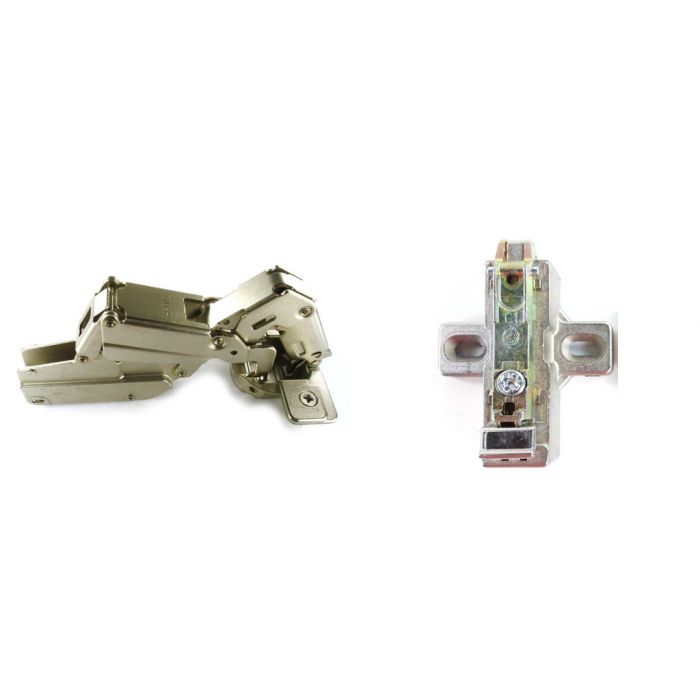

C2RSP99-BAV3E99F Salice Hinge Baseplate Combo -8mm to -3mm Overlay
As low as $0.00
Out of stock
SKU
C2RSP99-BAV3E99F
- C2RSP99
- BAV3E99F
- -8mm to -3mm
- 3mm
- Salice
- Each
Hinge Attributes
- 200 Series
- Inset
- 165°
- Push
- Nickel
- Nickel
- Knock-in (dowels)
- 11mm
- Push Open
Baseplate Attributes
- Clip-on
- Nickel
- Wood Screws
- Screw
- Cam
- 9mm
- Cross shape
- Cast
- No 3rd Hole
Overlay Drilling Chart | |
---|---|
Drilling Distance (TAB) | Door Overlay |
Inset Reveal (Door Gap) Drilling Chart | |
---|---|
Drilling Distance (TAB) | Inset Reveal (Door Gap) |
8mm | 3mm |
Term Explanations
Overlay Applications
- S = Thickness of the cabinet side
- D = Required door overlay
- T = Door thickness
- K = Drilling distance (TAB)
- A = Reveal
- L = Gap between door and carcase
- H = Height of the mounting plate
- G = Hinge constant
Whatever door overlay is required, you can select from our range the combination of both the type of hinge arm and the thickness of mounting plate necessary to solve your construction problem and avoid the need to stock too many different components.
Inset Applications
- S = Thickness of the cabinet side
- T = Door thickness
- K = Drilling distance (TAB)
- A = Reveal (Door Gap)
- L = Gap between internal face of door and internal cabinet elements (e.g. shelves, drawers, etc.)
- H = Height of the mounting plate
- G = Hinge constant
Whatever door overlay is required, you can select from our range the combination of both the type of hinge arm and the thickness of mounting plate necessary to solve your construction problem and avoid the need to stock too many different components.
Documents |
|
---|---|
Base Plate Attachment | Clip-on |
Base Plate Depth Adjustment | Cam |
Base Plate Fixing System | Wood Screws |
Base Plate Special Attributes | No 3rd Hole |
Base Plate Material | Cast |
Base Plate Color | Nickel |
Base Plate Height | 9mm |
Base Plate Shape | Cross shape |
Base Plate Height Adjustment | Screw |
Hinge Hole Spacing | 45mm |
Hinge Close Type | Push |
Hinge Fixing Hole Diameter | 8mm |
Hinge Cup Diameter | 35mm |
Hinge Cup Depth | 11mm |
Hinge Arm Color | Nickel |
Hinge Additional Features | Push Open |
Hinge Cup Color | Nickel |
Hinge Arm Shape | Inset |
Hinge Fixing System | Knock-in (dowels) |
Hinge Series | 200 Series |
Minimum Reveal on 3/4" Square Edge Doors | 0mm |
Sold As | Each |
