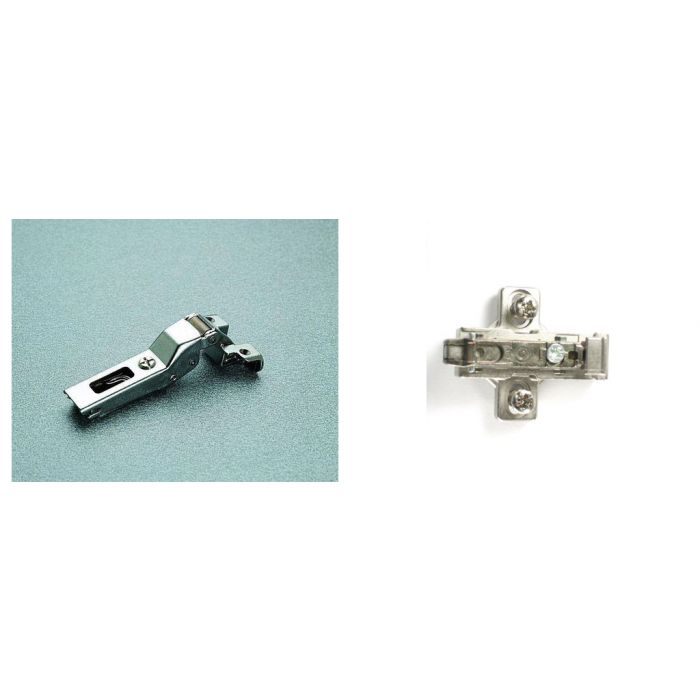

C2Z6G99-BAVGE99F/16 Salice Hinge Baseplate Combo 0mm to 3mm Overlay
As low as $0.00
Out of stock
SKU
C2Z6G99-BAVGE99F/16
- C2Z6G99
- BAVGE99F/16
- 0mm to 3mm
- Salice
- Each
Hinge Attributes
- 200 Series
- Half Overlay
- 105°
- Self-close
- Nickel
- Nickel
- Screw-on
- 11mm
- No Additional Features
Baseplate Attributes
- Clip-on
- Nickel
- Euro Screws
- Screw
- Cam
- 9mm
- Cross shape
- Cast
- No 3rd Hole
Overlay Drilling Chart | |
---|---|
Drilling Distance (TAB) | Door Overlay |
4mm | 1mm |
5mm | 2mm |
6mm | 3mm |
Term Explanations
Overlay Applications
![Salice Full Overlay Door Diagram](/store/media/wysiwyg/for_prod_desc/hinges/salicefulloverlaydoordiagram.png)
![Salice Full Overlay Door Diagram](/store/media/wysiwyg/for_prod_desc/hinges/salicehalfoverlaydoordiagram.png)
- S = Thickness of the cabinet side
- D = Required door overlay
- T = Door thickness
- K = Drilling distance (TAB)
- A = Reveal
- L = Gap between door and carcase
- H = Height of the mounting plate
- G = Hinge constant
Whatever door overlay is required, you can select from our range the combination of both the type of hinge arm and the thickness of mounting plate necessary to solve your construction problem and avoid the need to stock too many different components.
Documents |
|
---|---|
Base Plate Attachment | Clip-on |
Base Plate Depth Adjustment | Cam |
Base Plate Fixing System | Euro Screws |
Base Plate Special Attributes | No 3rd Hole |
Base Plate Material | Cast |
Base Plate Color | Nickel |
Base Plate Height | 9mm |
Base Plate Shape | Cross shape |
Base Plate Height Adjustment | Screw |
Hinge Close Type | Self-close |
Hinge Cup Diameter | 35mm |
Hinge Cup Depth | 11mm |
Hinge Arm Color | Nickel |
Hinge Additional Features | No Additional Features |
Hinge Cup Color | Nickel |
Hinge Arm Shape | Half Overlay |
Hinge Fixing System | Screw-on |
Hinge Series | 200 Series |
Minimum Reveal on 3/4" Square Edge Doors | NotListed |
Sold As | Each |
