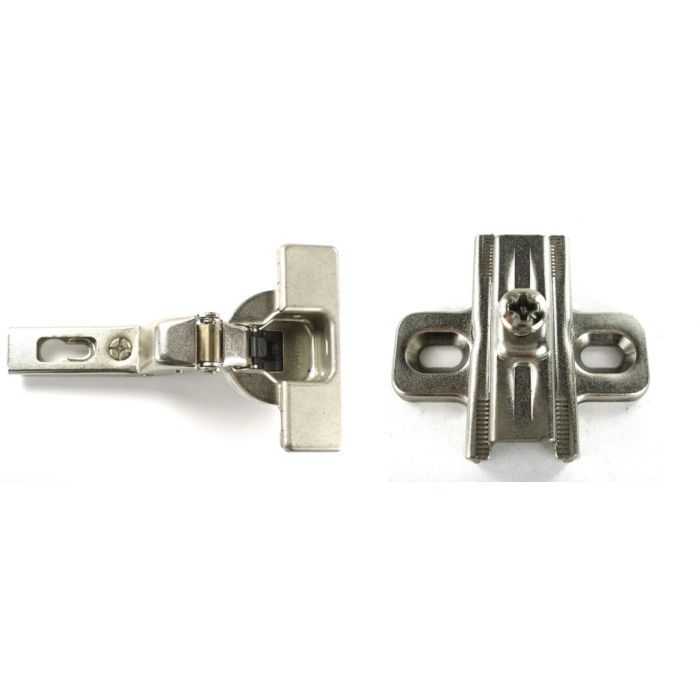

C7J6PD9-B2V3H99 Salice Hinge Baseplate Combo -8mm to -5mm Overlay
As low as $0.00
Out of stock
SKU
C7J6PD9-B2V3H99
- C7J6PD9
- B2V3H99
- -8mm to -5mm
- 3mm
- Salice
- Each
Hinge Attributes
- 700 Series
- Inset
- 110°
- Soft-close
- Nickel
- Nickel
- Logica
- 13.5mm
- No Additional Features
Baseplate Attributes
- Slip-on
- Nickel
- Wood Screws
- Screw
- Screw
- 9mm
- Cross shape
- Steel
- No Special Attribute
Overlay Drilling Chart | |
---|---|
Drilling Distance (TAB) | Door Overlay |
Inset Reveal (Door Gap) Drilling Chart | |
---|---|
Drilling Distance (TAB) | Inset Reveal (Door Gap) |
Term Explanations
Overlay Applications
- S = Thickness of the cabinet side
- D = Required door overlay
- T = Door thickness
- K = Drilling distance (TAB)
- A = Reveal
- L = Gap between door and carcase
- H = Height of the mounting plate
- G = Hinge constant
Whatever door overlay is required, you can select from our range the combination of both the type of hinge arm and the thickness of mounting plate necessary to solve your construction problem and avoid the need to stock too many different components.
Inset Applications
- S = Thickness of the cabinet side
- T = Door thickness
- K = Drilling distance (TAB)
- A = Reveal (Door Gap)
- L = Gap between internal face of door and internal cabinet elements (e.g. shelves, drawers, etc.)
- H = Height of the mounting plate
- G = Hinge constant
Whatever door overlay is required, you can select from our range the combination of both the type of hinge arm and the thickness of mounting plate necessary to solve your construction problem and avoid the need to stock too many different components.
Base Plate Attachment | Slip-on |
---|---|
Base Plate Depth Adjustment | Screw |
Base Plate Fixing System | Wood Screws |
Base Plate Special Attributes | No Special Attribute |
Base Plate Material | Steel |
Base Plate Color | Nickel |
Base Plate Height | 9mm |
Base Plate Height Adjustment | Screw |
Hinge Hole Spacing | 45mm |
Hinge Close Type | Soft-close |
Hinge Fixing Hole Diameter | 8mm |
Hinge Cup Diameter | 35mm |
Hinge Cup Depth | 13.5mm |
Hinge Arm Color | Nickel |
Hinge Additional Features | No Additional Features |
Hinge Cup Color | Nickel |
Hinge Arm Shape | Inset |
Hinge Fixing System | Logica |
Hinge Series | 700 Series |
Sold As | Each |
