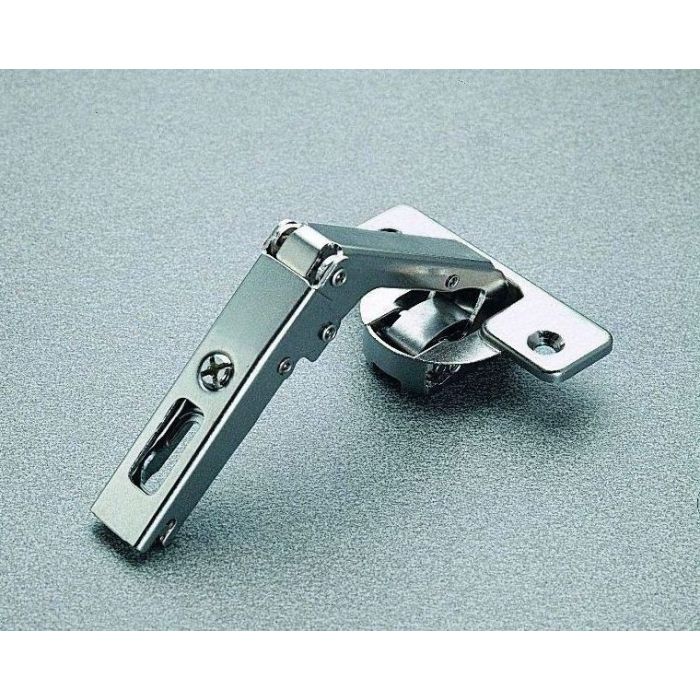

Concealed Hinge Salice 70° Opening Screw-on Self-close Pie Corner (C2PYA99)
$4.46
AVAILABLE TO ORDER
SKU
H10C2PYA99
Hinge Attributes
| Hinge: | C2PYA99 |
|---|---|
| Arm Shape: | Full Overlay |
| Degree of Opening: | 70° |
| Fixing System | Screw-on |
| Close Type: | Self-close |
| Color: | Nickel |
| Cup Depth: | 11mm |
| Hinge Special Feature: | Pie Corner |
| Manufacturer: | Salice |
| Sold As: | Each | Baseplate Required | Yes |
Pie Corner Hinges - Door to Door Installation
Mount the hinge onto Door 1 and the baseplate onto Door 2. Select your baseplate and mounting position by finding your door thickness in the chart below.
| Door Thickness | Baseplate Height | Baseplate Drilling Distance |
|---|---|---|
| 16MM | 6MM | 31MM |
| 19MM | 3MM | 28MM |
| 22MM | 0MM | 25MM |
REQUIREMENTS
- 4MM tab on door to door hinge
- 165º hinge required as shown in installation diagram at right (hinge available on pages 6-7) and apply the same as other doors
Screws Included
| Documents |
|
|---|---|
| Hinge Material | Steel |
| Hinge Additional Features | Pie Corner |
| Hinge Cup Depth | 11mm |
| Hinge Series | 200 Series |
| Hinge Hole Spacing | 45mm |
| Hinge Degree of Opening | 70° |
| Hinge Cup Diameter | 35mm |
| Hinge Fixing System | Screw-on |
| Hinge Cup Color | Nickel |
| Hinge Close Type | Self-close |
| Hinge Arm Shape | Full Overlay |
| Hinge Arm Color | Nickel |
| Minimum Reveal on 3/4" Square Edge Doors | 1.2mm |
| Sold As | Each |
| Lead Time | AVAILABLE TO ORDER |
| Manufacturer | Salice |
