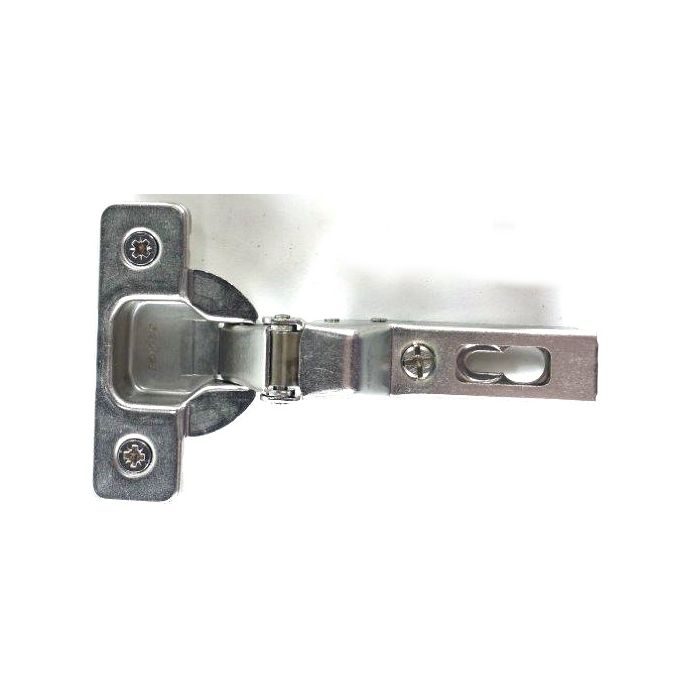

Concealed Hinge Salice 94° Opening Knock-in (dowels) Self-close Thick Door PN: C2RBG66
$2.10
AVAILABLE TO ORDER
SKU
C2RBG66
- Buy 50 for $1.70 each and save 19%
- Buy 300 for $1.66 each and save 21%
Hinge Attributes
| Hinge: | C2RBG66 |
|---|---|
| Arm Shape: | Half Overlay |
| Degree of Opening: | 94° |
| Fixing System | Knock-in (dowels) |
| Close Type: | Self-close |
| Color: | Titanium |
| Cup Depth: | 11mm |
| Hinge Special Feature: | Door up to 35mm Thick |
| Manufacturer: | Salice |
| Sold As: | Each | Baseplate Required | Yes |
| Documents |
|
|---|---|
| Hinge Material | Steel |
| Hinge Additional Features | Door up to 35mm Thick |
| Hinge Cup Depth | 11mm |
| Hinge Series | 200 Series |
| Hinge Hole Spacing | 45mm |
| Hinge Degree of Opening | 94° |
| Hinge Cup Diameter | 35mm |
| Hinge Fixing System | Knock-in (dowels) |
| Hinge Cup Color | Titanium |
| Hinge Close Type | Self-close |
| Hinge Arm Shape | Half Overlay |
| Hinge Fixing Hole Diameter | 8mm |
| Hinge Arm Color | Titanium |
| Minimum Reveal on 3/4" Square Edge Doors | .1mm |
| Sold As | Each |
| Lead Time | AVAILABLE TO ORDER |
| Manufacturer | Salice |
