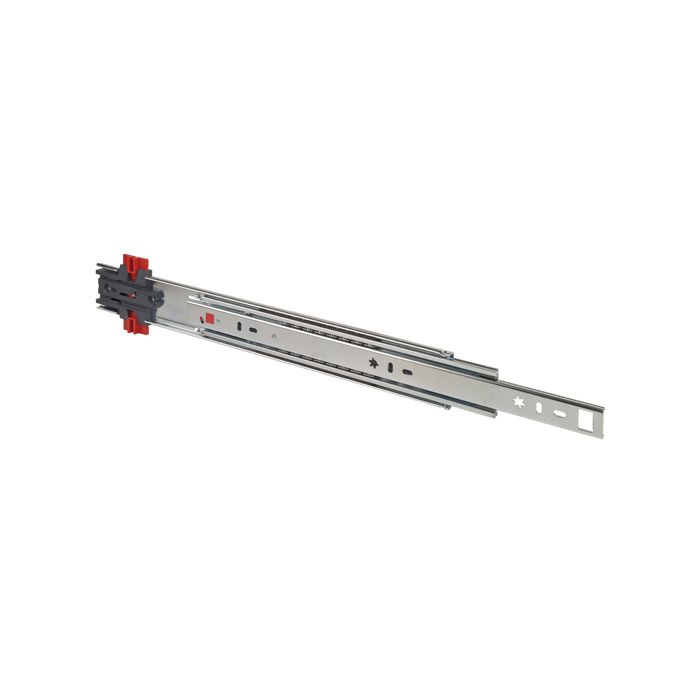

Fulterer 18" Full Extension 200 lbs Heavy Duty Drawer Slide FR5219-450
$29.15
AVAILABLE TO ORDER
SKU
FR5219-450
- Buy 10 for $25.66 each and save 12%
Part #: FR5219-450
Length: 18"
Capacity: 200 lb
Finish: Zinc Plated
Extension: Full
Overtravel: Yes
Closure: Detent
Mounting: Side
Style: Ball Bearing
Screws: Included
Sold As: Pair
Length: 18"
Capacity: 200 lb
Finish: Zinc Plated
Extension: Full
Overtravel: Yes
Closure: Detent
Mounting: Side
Style: Ball Bearing
Screws: Included
Sold As: Pair
- Interlock & anti-tilt
- Locking
- Cold Rolled Steel
- Steel Ball Bearings
- Precision ball bearing drawer slide for heavy-duty applications in office furniture, architectural milwork and institutional applications
- Drawer profile features an easy to operate disconnect finger release trigger
- This system allows only one drawer at a time to be opened
- System 32 compatible hole locations
- Drawer slide is non-handed
- Interlock and anti-tilt closing mechanism
- 25mm (.98 in.) overtravel standard
- See the links at the bottom of this page for required 5019, 5219, and 5619 interlock rods and optional FR 5218 locking system
- Data Sheet
- 43.2mm (1.70 in.) is the minimum clearance from the center of the slide to the bottom panel
| Mount | Side Mount |
|---|---|
| Length | 18" |
| Extension | Full-Extension |
| Capacity | 200 lb |
| Color | Zinc |
| Close Movement | Detent |
| Overtravel | Overtravel |
| Style | Ball Bearing |
| Sold As | Pair |
| Lead Time | AVAILABLE TO ORDER |
| Manufacturer | Fulterer |
