Kreg Jig® HD KJHD Sold As Each

The Heavy-Duty Solution for Building with Wood
Creates joints 50% stronger than standard Kreg Joints™
Optimized for large outdoor projects
For use with materials 11/2" thick (38mm) and thicker
Works with the Kreg Jig® K3, K4, K4MS, and K5
Stop Block provides easy, repeatable registration to workpiece
Face Clamp locks into Kreg Jig HD for secure drilling
Hex-Shank HD Drill Bit is Quick-Change compatible
Description
Bigger bit, bigger screws, and of course—bigger projects. The Kreg Jig® HD delivers the strength and confidence you need to BUILD BIG!
Efficient Design and Hardened-Steel Drill Guides
Designed with the same tried-and-true efficient design and hardened-steel drill guides as the original Kreg Jig®, the Kreg Jig® HD lets you create joints in 11/2" and thicker materials that are an amazing 50% stronger than traditional Kreg Joints™. If you are framing walls, building deck railings, outdoor furniture, or any other large project, you always want the strongest joint possible; and this is where the Kreg Jig® HD excels—strength.
Great for 2x4s and 11/2"-Thick and Larger Stocks
The Kreg Jig® HD is optimized for working with 2x4s and 11/2" thick and larger stock. It utilizes #14 heavy-duty, hardened-steel screws that provide incredible shear-resistance, as well as three anti-corrosion layers for incredible long-term moisture resistance.
Works As a Stand-Alone Jig
The Kreg Jig® HD works great as a stand-alone jig. Simply connect it to your Kreg® Face Clamp, lock it into place, and take it where you need to go. Depending on the project, the Kreg Jig® HD can also connect directly to your model K3, K4, K4MS, or K5 Kreg Jig® benchtop base for upright drilling.
NOTE: Be sure to check with your local building code authority before using the Kreg Jig® HD to construct load-bearing objects such as interior walls or deck railings. Building codes differ from area to area. Please reference applications in user manual.
Specs
Body Material
Glass-Filled Nylon

Number of Drill Guides
(2) 1/2" (12mm) diameter HD pocket holes

For Use with
1-1/2" (38mm) and thicker material

Drill Guide Spacings
1-7/16" (36mm)

Clamping Method
Works with Kreg® Face Clamps and a variety of other clamps

Compatibility
Kreg Jig® K3, K4, K4MS, and K5 benchtop base

Warranty
Lifetime Kreg® Drill Guide Warranty

Includes

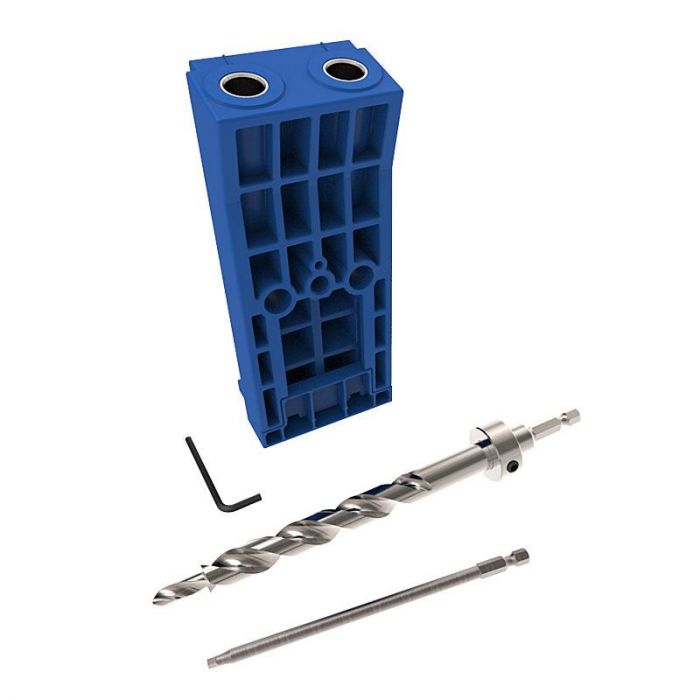

HD Drill Guide, stop block, 1/2" (12mm) diameter HD stepped drill bit, 6" HD driver bit, stop collar, Allen wrench, starter Kreg® Screw set, and owner’s manual.
