Soft Close, Compact , 1/2" Overlay, Face Frame Hinge, 105-degree opening, 7/16" cup depth, Press-in Dowel
$2.06
AVAILABLE TO ORDER
SKU
H294-D-SC

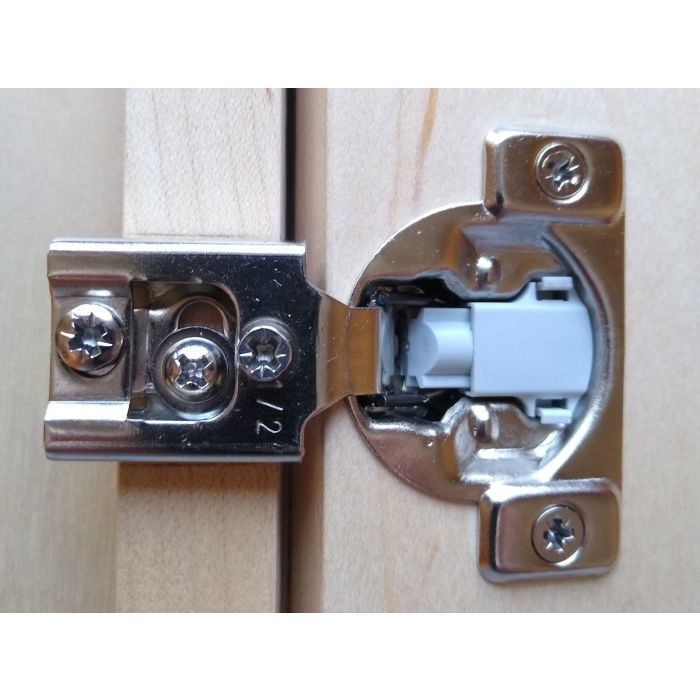

Soft close 1/2" overlay compact face-frame hinge press in dowel
Soft Close Face Frame Compact Hinge
1/2" overlay
105-degree opening
7/16" cup depth
With Dowel Press-in
Adjustable soft close, may use one or two soft close hinges for desired soft close action.
Cam adjust in out
Cam adjust side to side
Fixing screw adjust height
| Documents | Soft Close Compact Hinge, 1/2" Overlay, Face Frame Hinges, 105-degree opening, 7/16" cup depth, Press-in |
|---|---|
| Hinge Material | Steel |
| Hinge Additional Features | 2 Cam Adjustment, 1 Fixing Screws |
| Hinge Hole Spacing | 45mm |
| One Piece Hinge Overlay | 1/2" |
| Required Drilling Distance (TAB) | 2.5mm |
| Hinge Degree of Opening | 105° |
| Hinge Cup Diameter | 35mm |
| Hinge Fixing System | Knock-in (dowels) |
| Hinge Cup Color | Nickel |
| Hinge Close Type | Soft-close |
| Hinge Arm Shape | 1/2" Overlay |
| Hinge Fixing Hole Diameter | 8mm |
| Hinge Arm Color | Nickel |
| Sold As | 1 Each |
| Lead Time | AVAILABLE TO ORDER |
| Manufacturer | Pride |
