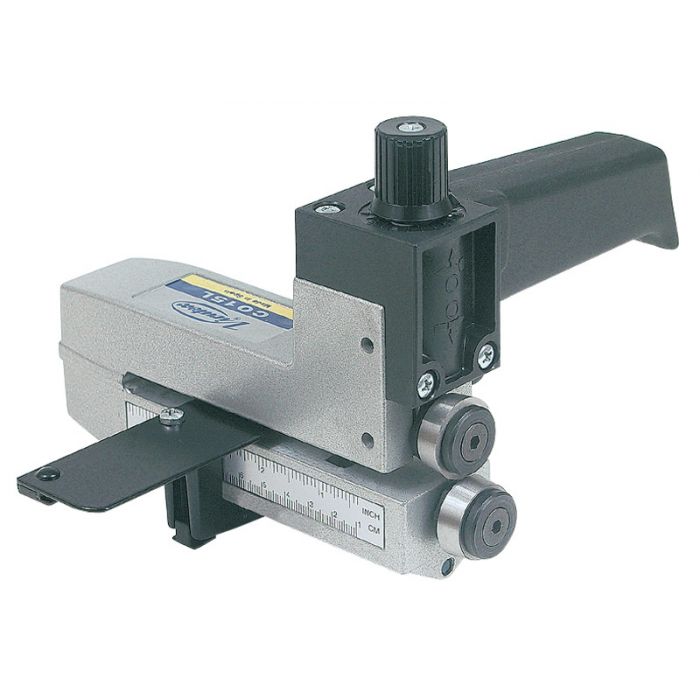

This hand held portable unit replaces the old model
numbers: CO15E and T78. The blades are the same for
all models. For parts diagram of older models see below
Strip cutter for plastic laminates & veneers.
Quick and easy to use. Obtain a clean and
splinter free cut with no waste. Cutting thickness can be
adjusted with a micrometer. A metric/inch scale can be used
for easy adjustment of the strip width.
The new and improved metal bracket made of a special
alloy provides a stronger hold and stability for the guide
fence. The fence is also bolted at each end for extra
strength. The unit is equipped with a special lock knob
assembly for a tighter lock of the metal bracket which holds
Cutting width:1/2 to 4.33", (12-100 mm).
Cutting depth: 0-3/32", (0-2 mm)
Weight: 2.7 Pounds (1.2 Kg )Operating Instructions
