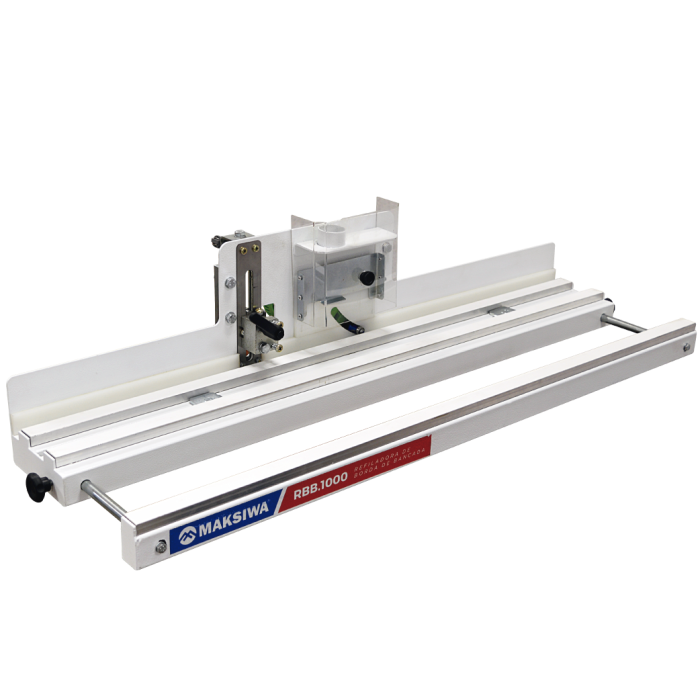

This Edge Banding Trimmer is the perfect companion to Maksiwa’s popular Edgebander. Manually feeding a banded panel through the unit will produce a horizontal cut, a vertical cut and a scraping procedure all in one step. Simply turn the board over, and the second pass will complete the finished edge. The bench top Edge Banding Trimmer will work on PVC, ABS, paper and wood edge banding. At less than 42 pounds, the portability adds to the versatility of this must-have machine. With the adjustable fence, you can widen the stance from 6" to 16". This unit can easily be secured to any workbench table with the supplied clamps. The powered router/trimmer is cradled in the swinging support and is gravity fed to the work surface, driving a 1/4" rounded bearing bit. The scraper block finalizes the cut with a slightly rounded contour to ensure a professional, smooth finish. The cutting area includes a transparent polycarbonate cover, which serves as a safety device while also forming a convenient dust extraction point that can be connected to all popular vacuum systems to help keep your workstation clean and safe. The cover is fully adjustable and securely held by two rare-earth magnets, allowing a work piece thickness up to 2-3/8".
- Max. Work piece Height: 2-3/8"
- Table Length: 39″
- Table Width 6″ to 16″
- Trimmer Speed 32,000 RPM
- Power: 500W
- Net Weight 41.9 pounds
- Weight: 44 pounds
- Additional Information
Documents No Manufacturer Virutex Sold As Each Lead Time Available for order, generally ships in 7-10 business days
