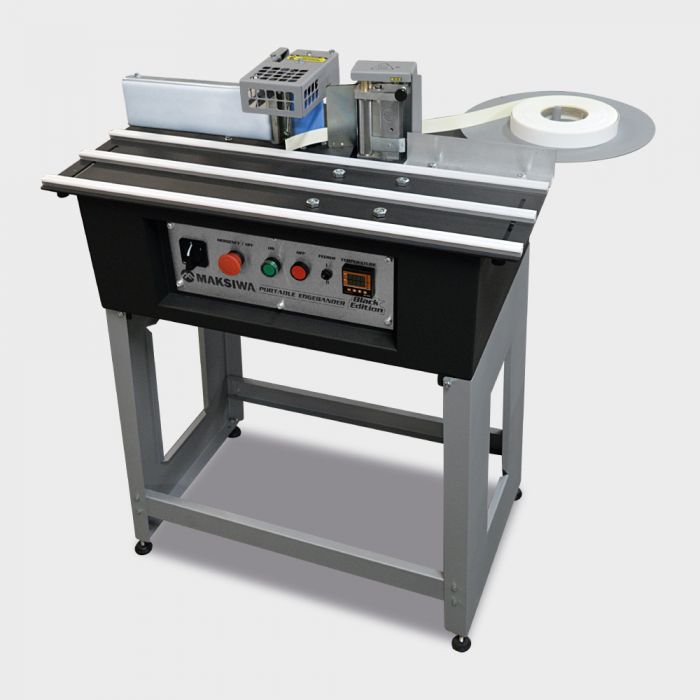

PORTABLE EDGEBANDER BLACK EDITION Made by Maksiwa – CBC.E BLACK

$2,299.00
In stock: 1 qty
SKU
CBC.E BLACK
    Features
  • Retractable legs – Easy Transportation
  • Uses hot melt glue – Edgebanding does not need to be pre-glued
  • Allows for thick material up to 2MM and 3” wide
  • 1.5 lbs glue pot
  • Heats in only 15 minutes
  • Easy adjustable digital thermostat
  • Glues all major edgebanding materials
  • Adjustable glue flow rate
  • Jowat JW.282.20 Hot melt recommended

Click to download Manual (pdf)

The Maksiwa CBC.E Portable Edgebander is designed for convenience, portability, and affordability. This unit features retractable legs and feet, which make for easy portability and transportation. The CBC.E uses a hot glue process for adhering edge banding such as PVC, ABS, paper and wood that do not have a glue backing. This unit utilizes edge banding with a maximum tape height of 3" (80 mm) and a tape thickness of 0.3mm to 2mm. The integrated manual cutter offers precise cutting of the tape. With a digital control temperature panel and glue pot with the capacity of 1.5 pounds (700 grams), this edgebander is a must-have for any cabinet shop. The Maksiwa CBC.E is easy to assemble, heats up in 15 minutes, and is easy to use. A spiral glue bar raises the glue from the glue pot and flows back down, similar to a fondue fountain. The electronic power panel consists of a master on/off switch, hands-free emergency shut-off switch, glue pot on/off switch, feeder switch and digital thermostat. The digital thermostat panel is pre-set at the factory to 170° Celsius and is easily adjustable from 120° to 220° Celsius, depending on your glue choice. Maksiwa recommends glues that work in the range of 160° up to 190° Celsius. Adjustments for height and width of edge tape can be made easily. There is also an adjustment for glue flow rate. Safety features include an emergency button, which will instantly shut down all machine controls, and a feeder switch, which activates the feeder (rubber and glue axis). This switch will only activate the glue bar after confirming glue reaches a pliable state. Minimal cleaning and maintenance are required. This unit offers a one-year manufacturer’s warranty.

    Specifications
  • Motor: 1 Phase
  • Tape Thickness: .018" to 2MM
  • Max. Tape Width: 3-3/32"
  • Box Dimensions: 32.7″ x 21.2″ x 19.3″
  • Power: 1,500W
  • Voltage: USA: 110V – 1 Phase
  • Weight: 52 kg (114.6 pounds)
More Information
Sold As Each
Lead Time Available for order, generally ships in 7-10 business days
